2 way electric ball valve with manual override 2.5NM Torqu motorized valve wiring diagram

FOB Price:

US 5-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

CWX-25S

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: CWX-25S

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: --

Specifications

2 way electric ball valve with manual override 2.5NM Torqu motorized valve wiring diagram

Features:
Mini dimension suits for small equipment
Patented technology-floating seal structure
Long service life 100,000 circles
Low working current, only 60 to 80mA
IP65 and F type are available
Manual override function is safe and easy

Specification

Product size : G (bsp/npt) 1/2" 3/4' 1"

Maximum working pressure : 1.0Mpa

circulation means : fluid, air

rated voltage : DC3-6V 12v ADC9-24V AC220V

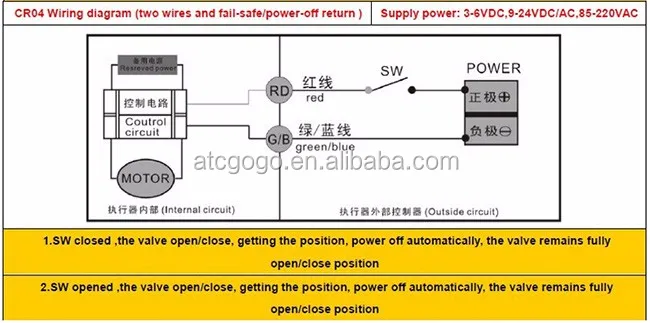

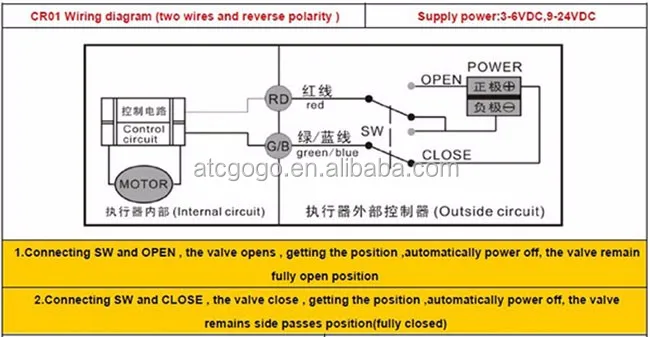

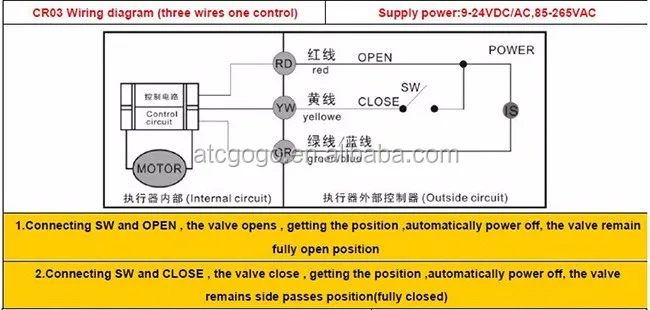

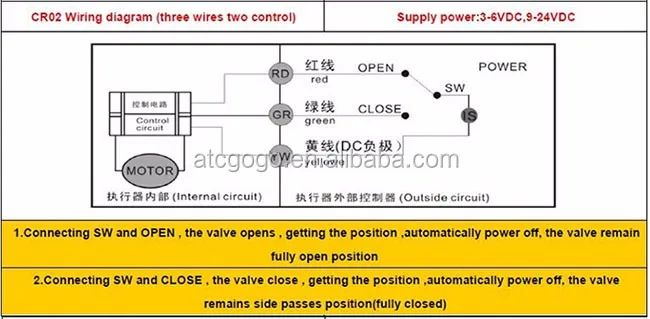

Wiring Control Methods : CR-01,CR02 ,CR03 ,CR04 , CR05

Working current : <80mA

Open / close time : <8s

Life time : 100000 veces

Valve body material : SS304;BRass

Actuator Material : Engineering plastics

Seal Material : EPDM y PTFE

Ball: brass or stainless steel
Stem: brass or stainless steel

Rotation of actuator : 90

Ambient temperature :0~ 90°c

Rotation direction: double acting

Max. Torque output : 2.5 n. m

Medium temperature: 0-90°C

Manual override : Yes

Special function:position indicator;quick open

Protection class : IP65

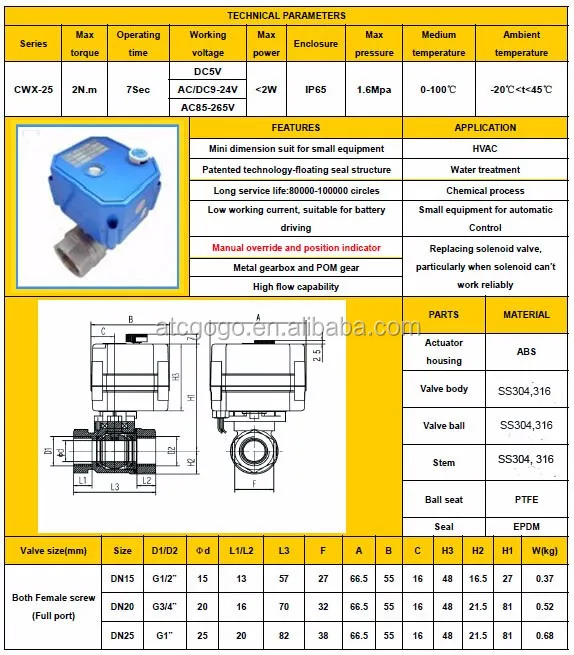

Dimensions

Manual operation schematic diagram:

1. It is only permitted to use when power off.

2. Lift the hand-wheel, and turn it left or right until the valve is in place.

3.When the black line on the indicator is horizontal the valve is on; when vertical,

the valve is off.

4. Press down hand-wheel after using manual override in order to work properly when power-on.

cables

For occasions
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation equipment, environmental protection.
